Individual solutions

Shape & dimensional inspection

Object recognition and measurement of objects

The metrological control of geometric features such as lengths, angles or surfaces is indispensable in todays production process, as this is the only way to detect and reject defective parts at an early stage. With the help of various methods and highly accurate calibration procedures, we verify your objects for shape and dimensional accuracy with extreme precision and deliver resilient and repeatable measurements.

Examples of successfully realised projects

  • Measurement of cast plastic and aluminium diecast objects in 3D and 2D

  • Measuring milled objects in 2D

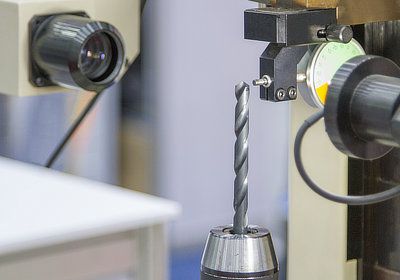

  • Measurement of drill-heads, blades, etc.

  • Dimensional inspection of coins (height, diameter, orientation / position, features)

  • Measurement of the needle geometries of syringes

  • O-ring measurement

  • Inspection of ceramic componetns (height, diameter, curvature, chips, holes)

  • Stitching of images to measure large electronic boards

What can we do for you?

We will be happy to discuss your ideas and requirements and develop a specialised solution together with you, tailored to your individual needs.
